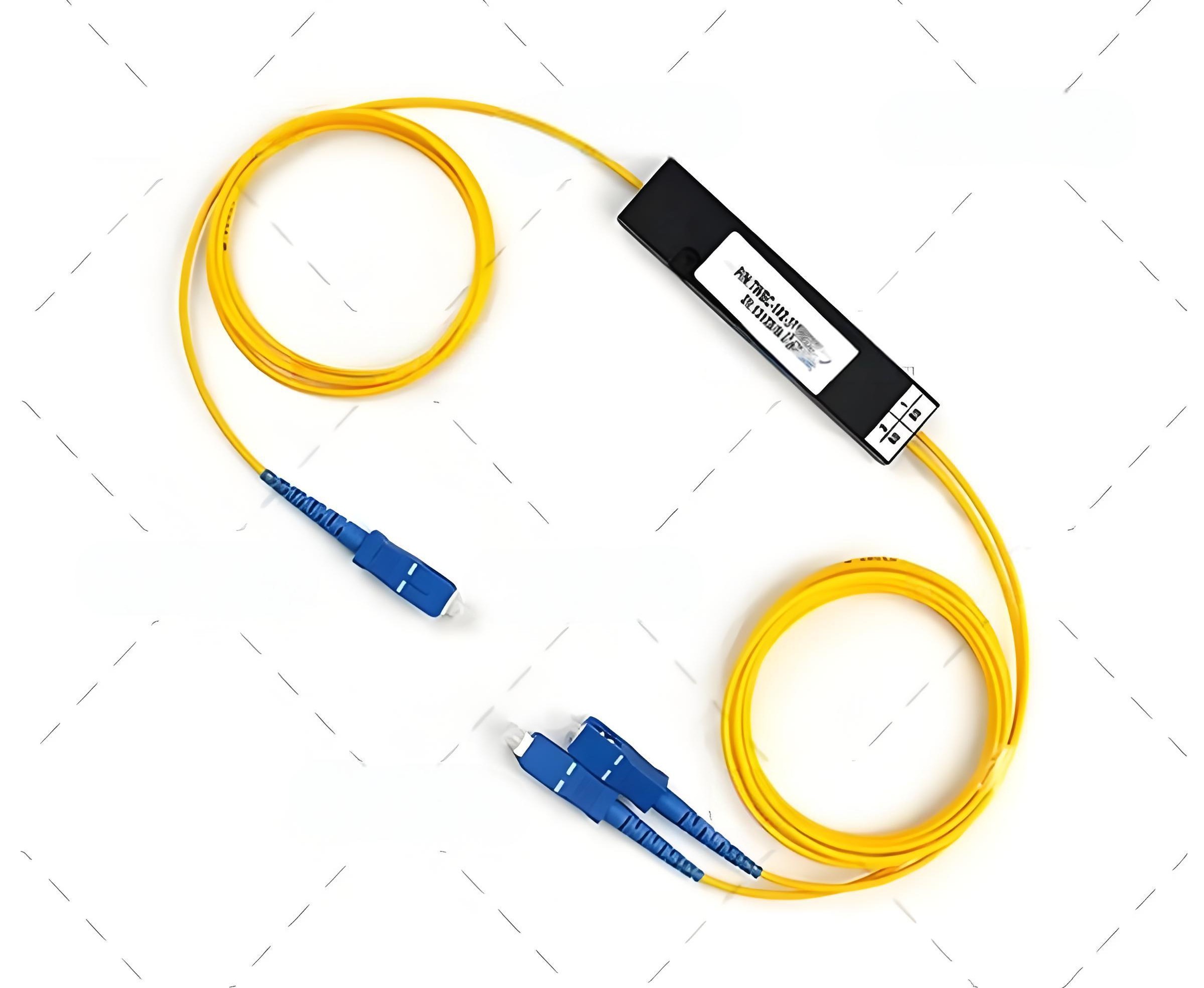

FBT Coupler
FBT couplers split or couple optical power in two wavelength regions while maintaining a very broad operating bandwidth. Splitting and coupling ratios are available from 1:99 to 50:50. FBT Couplers are widely considered one of the most cost-effective solutions to optical power management. Based on our fused biconical technology, FBT coupler is an all-fiber device, and is designed and manufactured to meet Telcordia® requirements.
Category:
Key Words:
PLC Splitter
- Product Detail
-
Features:
- Passed Telcordia GR-1221-CORE reliability tests
- Low excess lossSpecification:
Type - 1x2Single mode coupler Wavelength nm 1310 & 1550 Bandwidth nm ±40 Grade - P S Insertion loss dB(max) 1/99 22.5/0.25 23.5/0.3 2/98 18.8/0.3 19.5/0.35 5/95 14.6/0.4 15.5/0.5 10/90 11.5/0.65 12.0/0.8 20/80 7.9/1.2 8.0/1.4 30/70 5.9/1.9 6.0/2.1 40/60 4.7/2.7 4.9/2.9 50/50 3.6/3.6 3.8/3.8 Uniformity dB(max) 50/50 0.5 0.7 PDL dB(max) 0.2 0.25 Return loss dB(max) 55 Operating temp. ℃ 50/50 -40~+85 Type - 1x2Multi mode coupler Wavelength nm 850/1300 Bandwidth nm ±20 Grade - P S Insertion loss dB(max) 20/80 7.8/1.4 8.1/1.7 30/70 6.0/2.1 6.3/2.4 40/60 4.7/2.7 5.0/3.0 50/50 3.7/3.7 4.0/4.0 Uniformity dB(max) 50/50 0.5 0.7 Directivity dB(max) 35 Operating temp. ℃ 50/50 -40~+85
Applications
5G Communication
In the 5G era，the optical network plays an increasingly important role and has become a solid base for the entire 5G communications network . At Egix, we are committed to producing ever better and more comprehensive fiber optic products to better adapt to the rapidly changing demand for more powerful, more efficient, faster, and smarter data transmission and data exchange from social and economic development.
Telecom and FTTx Networks
The increasing demand for high-speed broadband internet access drives the world to revolve around bandwidth. Global telecom infrastructure struggles to keep up with the ever-shifting ways we use it, which drives service providers to invest in or expand on "all-fiber networks". Egix delivers reliable fiber optic cable assemblies and interconnect components to telecom service providers, helping users across the world transition from traditional legacy copper networks to high-speed all-fiber networks.
Enterprise Networks
Today's enterprise agenda is driving fiber optic interconnections, and fiber optic connection is changing the way we connect. Most enterprises recognize that upgrading network equipment and devices is critical to meeting their intensive communication needs. However, upgrading equipment is just the beginning, while aligning with high-performance fiber cabling solutions should be the panacea to optimize network performance.
Data Center
The data center has become an essential element in modern organizations playing a vital role in various aspects of human activities. The reliability and flexibility of the network within data centers are critical to no digital success of your business. Egix mission is to provide you with a reliable, scalable, and high-performance cabling system tailored to your specific needs to ensure optimal performance.
Underground optical cable visual management system
With the continuous development of communication lines, more and more optical cables and pipelines are buried underground, but with the change of time and some human factors, it is difficult to judge the cause of line failure only by drawing and experience. At the same time, it is of great significance to find out the exact location and buried depth, specification, size and other information parameters of the urban underground pipeline, which is of great significance for urban construction, maintenance and future planning. Therefore, the Egix underground pipeline electronic identifier system provides identity marks for buried pipeline facilities, and helps customers realize the information and visual management of underground pipeline facilities.
