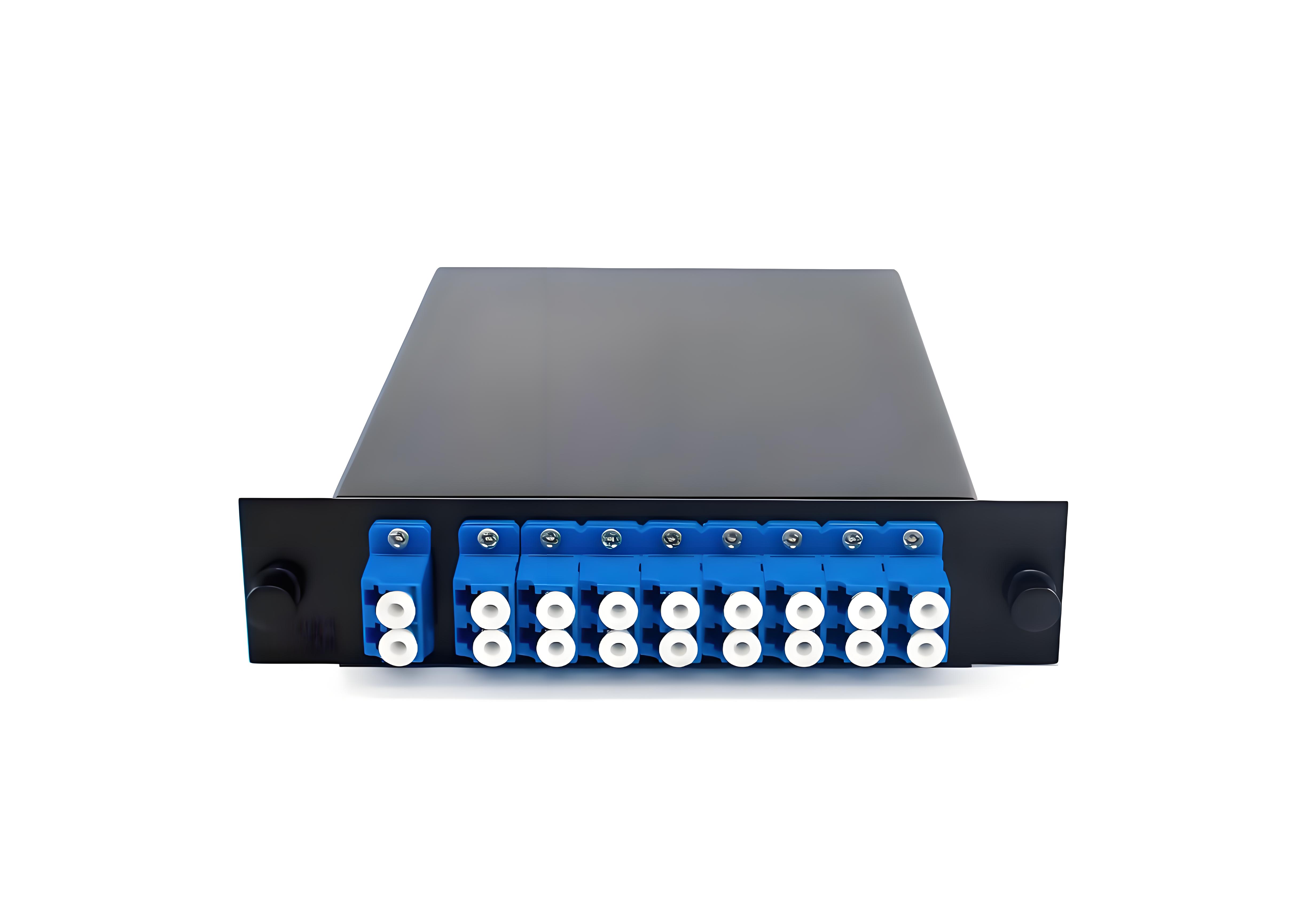

DWDM Module
EGIX DWDM Module is a product that meets the ITUT-G.694.1 DWDM wavelength standard. It has a flexible wavelength configuration and can be expanded to multiple in the C+L band (1525-1625nm). Wavelength, can meet the long-distance, high-capacity national backbone network, metropolitan area network and other application scenarios
Category:
Key Words:
DWDM Module
- Product Detail
-
Features:
- Widely Operating Wavelength Range
- Low Insertion Loss
- High Channel Isolation
- High Stability and Reliability
- Insensitive to shock and vibration
- Ultra Flat Wide Pass band
- Epoxy Free Optical PathSpecification:
Parameter Unit Spec.
Channel Spacing GHz 100 or 2000 Channel count - 4 8 16 Channel central wavelength nm ITU±0.11 Inserion Loss dB ≤2.0 ≤3.0 ≤5.5 Isolation Adjacent channel dB ≥25 Non-adjacent channel dB ≥40 Ripple dB ≤0.5 Return Loss dB ≥45 Polarization dependent loss dB ≤0.15 Directivity dB ≥45 Power handling mW 300 Operating temp. ℃ -5~75 Storage temp. ℃ -40~85 Package dimension mm L100 x W80 x H10 L120 x W80 x H18
Applications
5G Communication
In the 5G era，the optical network plays an increasingly important role and has become a solid base for the entire 5G communications network . At Egix, we are committed to producing ever better and more comprehensive fiber optic products to better adapt to the rapidly changing demand for more powerful, more efficient, faster, and smarter data transmission and data exchange from social and economic development.
Telecom and FTTx Networks
The increasing demand for high-speed broadband internet access drives the world to revolve around bandwidth. Global telecom infrastructure struggles to keep up with the ever-shifting ways we use it, which drives service providers to invest in or expand on "all-fiber networks". Egix delivers reliable fiber optic cable assemblies and interconnect components to telecom service providers, helping users across the world transition from traditional legacy copper networks to high-speed all-fiber networks.
Enterprise Networks
Today's enterprise agenda is driving fiber optic interconnections, and fiber optic connection is changing the way we connect. Most enterprises recognize that upgrading network equipment and devices is critical to meeting their intensive communication needs. However, upgrading equipment is just the beginning, while aligning with high-performance fiber cabling solutions should be the panacea to optimize network performance.
Data Center
The data center has become an essential element in modern organizations playing a vital role in various aspects of human activities. The reliability and flexibility of the network within data centers are critical to no digital success of your business. Egix mission is to provide you with a reliable, scalable, and high-performance cabling system tailored to your specific needs to ensure optimal performance.
Underground optical cable visual management system
With the continuous development of communication lines, more and more optical cables and pipelines are buried underground, but with the change of time and some human factors, it is difficult to judge the cause of line failure only by drawing and experience. At the same time, it is of great significance to find out the exact location and buried depth, specification, size and other information parameters of the urban underground pipeline, which is of great significance for urban construction, maintenance and future planning. Therefore, the Egix underground pipeline electronic identifier system provides identity marks for buried pipeline facilities, and helps customers realize the information and visual management of underground pipeline facilities.
