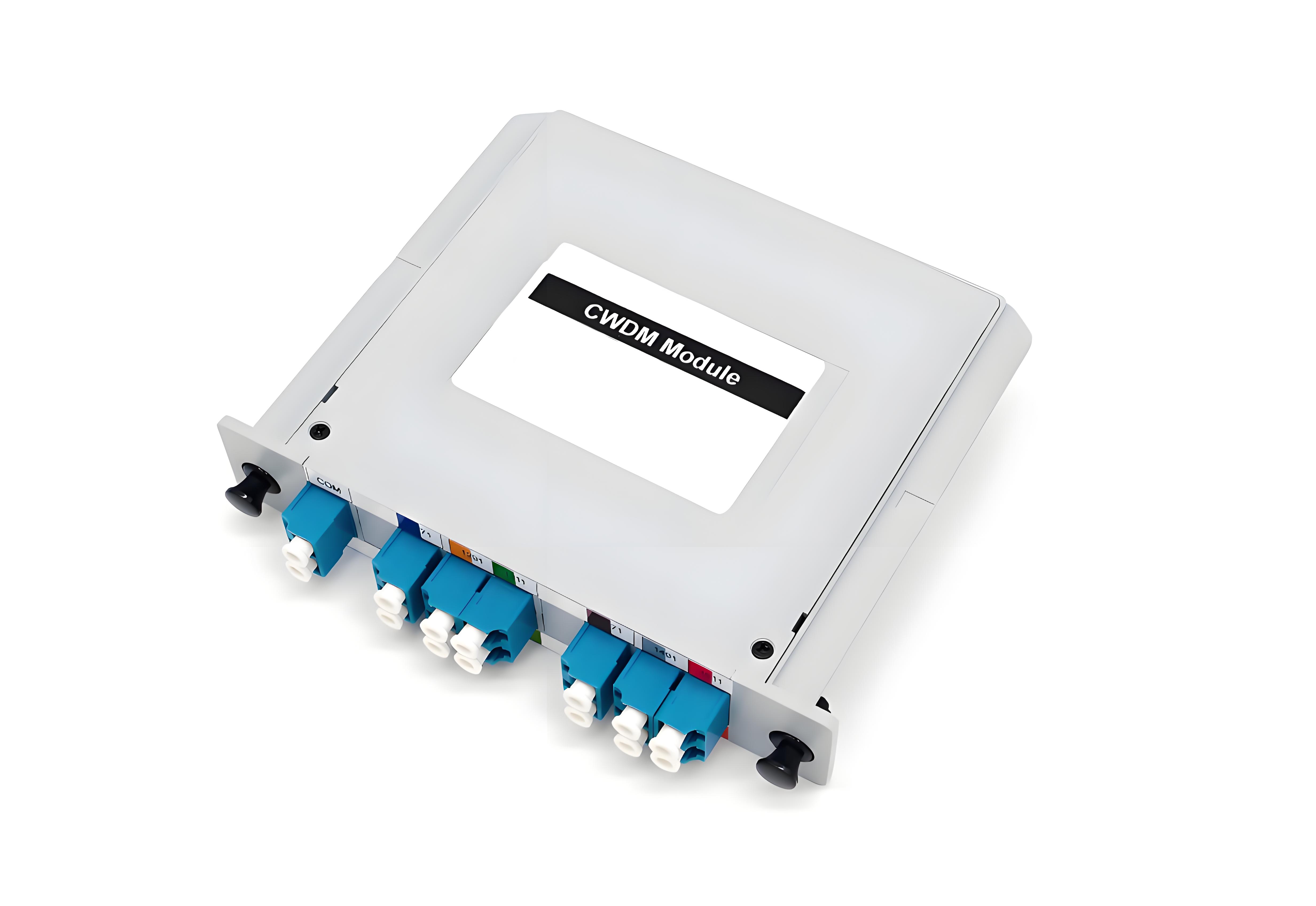

CWDM Module
EGIX CWDM Module is a product that meets the ITUT-G.694.2 CWDM wavelength standard. It has a flexible wavelength configuration and can be extended to 18 wavelengths in the range of 1260-1620nm, which can meet the needs of metropolitan areas. Network convergence layer, small city backbone network and access network, 5G fronthaul network and other application scenarios.
Category:
Key Words:
CWDM Module
- Product Detail
-
Features:
- Automatic alignment
- Optical patch epoxy free
- Low insertion loss and high isolation
- Insensitive to shock and vibration
- Compliant with Telcordia GR-1209-Core requirements
- RoHS compliantSpecification:
Parameter Unit Spec.
Channel count - 2 4 6 8 12 16 Channel central wavelength nm 1270~1610 or 1271~1611 Channel Spacing nm 20 Bandwidth nm ITU±7 Inserion Loss dB ≤0.9 ≤1.5 ≤2.5 ≤2.5 ≤3.0 ≤3.5 Isolation Adjacent channel dB ≥30 Non-adjacent channel dB ≥45 Ripple dB ≤0.5 Return Loss dB ≥45 Polarization dependent loss dB ≤0.2 Directivity dB ≥45 Power handling mW 300 Operating temp. ℃ -5~75 Storage temp. ℃ -40~85 Package dimension mm L100 x W80 x H10 L120 x W80 x H18 NOTE: The above parameters exclude connector loss;
Tap monitoring port and extending port are optional.
