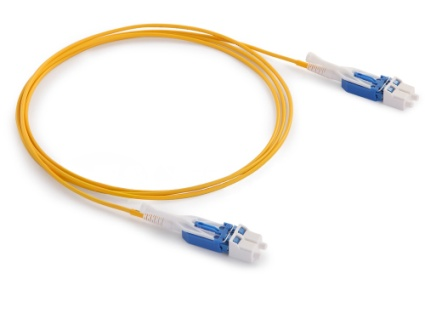

IEC Graded Patchcord & Pigtail

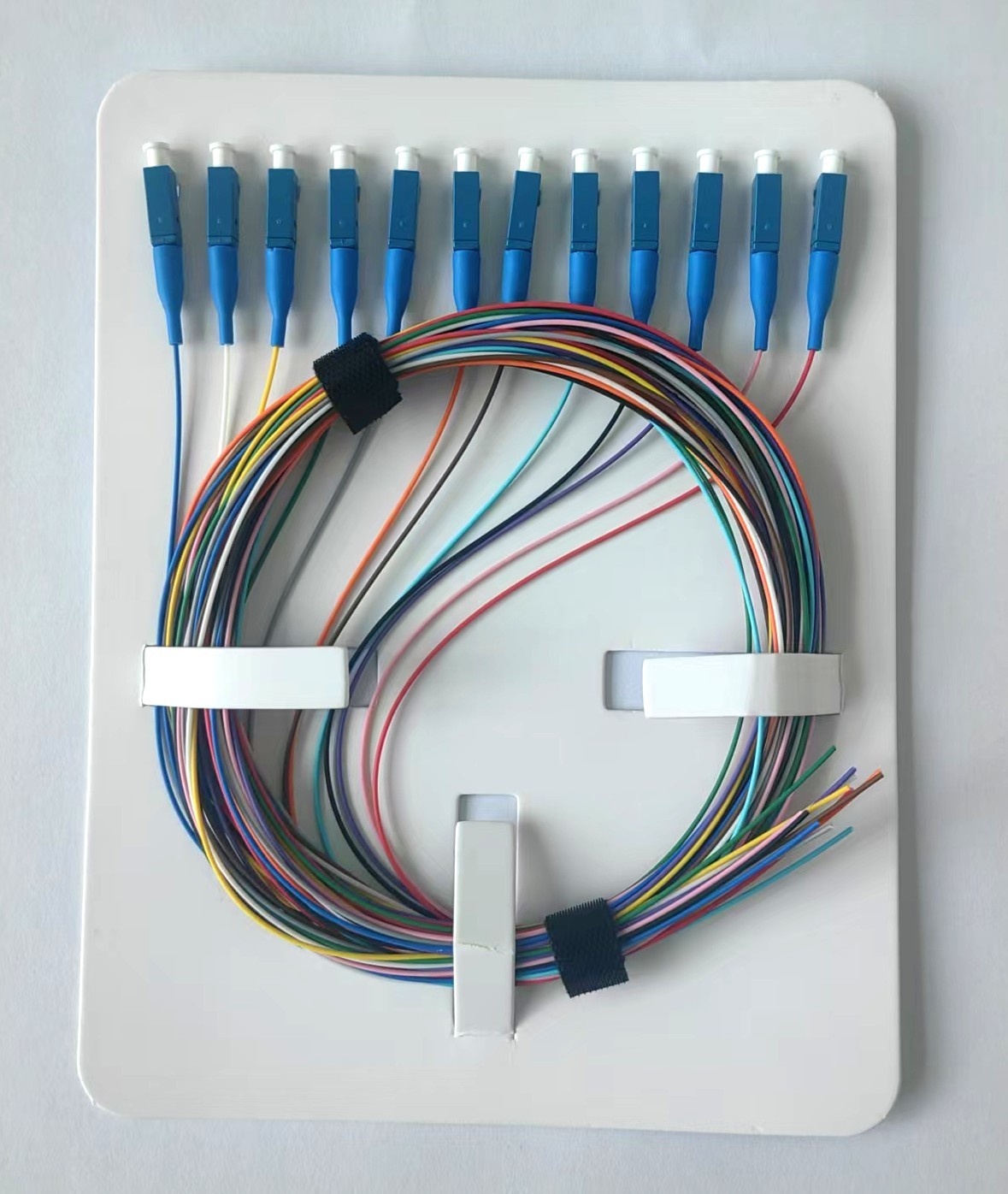

Fiber patch cord normally consists of optical fiber cable and connectors at both ends of the cable, the pigtail is connector assembled at one end, low mating insertion loss and negligible attenuation for access. Besides conventional connectors like LC, LC uniboot, SC, MU, ST, FC, E2000, special and new connector like CS, SN connector patch cord is also mature IEC, EIA/TIA compliant. As an experienced patch cord manufacturer, EGIX provide high-quality fiber patch cords for years.
Category:
Key Words:
IEC Graded Patchcord & Pigtail
- Product Detail
-
Features:
- Telcordia, IEC, TIA/EIA standard compliant
- 100% optical performance inspection and endface geometric parameter control
- Low insertion loss and high return loss
- RoHS compliant
- Varieties of cable assembliesSpecification:
Fiber Optic Performance
Connector - LC, SC, FC, ST, MU, CS, SN Mode - SM MM Endface - PC UPC APC PC Cable diameter mm ∅ 2,∅ 3,∅ 0.9 Endface Geometric Parameter
Endface Polishing - PC APC Radius of Curvature SC mm 10~25 5~12 LC mm 7~25 5~12 Apex Offset μm ≤50 Fiber Spherical Height nm -125~+100 Angular Error ° 0±0.5 8±0.5 Grade Random mating(IEC61300-3-34) Grade B IL ≤ 0.12dB(mean), IL max 0.25dB for 97% samples Grade C IL ≤ 0.25dB(mean), IL max 0.5dB for 97% samples Grade D IL ≤ 0.50dB(mean), IL max 1.0dB for 97% samples
Applications
5G Communication
In the 5G era，the optical network plays an increasingly important role and has become a solid base for the entire 5G communications network . At Egix, we are committed to producing ever better and more comprehensive fiber optic products to better adapt to the rapidly changing demand for more powerful, more efficient, faster, and smarter data transmission and data exchange from social and economic development.
Telecom and FTTx Networks
The increasing demand for high-speed broadband internet access drives the world to revolve around bandwidth. Global telecom infrastructure struggles to keep up with the ever-shifting ways we use it, which drives service providers to invest in or expand on "all-fiber networks". Egix delivers reliable fiber optic cable assemblies and interconnect components to telecom service providers, helping users across the world transition from traditional legacy copper networks to high-speed all-fiber networks.
Enterprise Networks
Today's enterprise agenda is driving fiber optic interconnections, and fiber optic connection is changing the way we connect. Most enterprises recognize that upgrading network equipment and devices is critical to meeting their intensive communication needs. However, upgrading equipment is just the beginning, while aligning with high-performance fiber cabling solutions should be the panacea to optimize network performance.
Data Center
The data center has become an essential element in modern organizations playing a vital role in various aspects of human activities. The reliability and flexibility of the network within data centers are critical to no digital success of your business. Egix mission is to provide you with a reliable, scalable, and high-performance cabling system tailored to your specific needs to ensure optimal performance.
Underground optical cable visual management system
With the continuous development of communication lines, more and more optical cables and pipelines are buried underground, but with the change of time and some human factors, it is difficult to judge the cause of line failure only by drawing and experience. At the same time, it is of great significance to find out the exact location and buried depth, specification, size and other information parameters of the urban underground pipeline, which is of great significance for urban construction, maintenance and future planning. Therefore, the Egix underground pipeline electronic identifier system provides identity marks for buried pipeline facilities, and helps customers realize the information and visual management of underground pipeline facilities.
ADVANTAGE
Through continuous innovation and advanced technology, provide our customers with the best and most cost-effective solutions
Innovation
EGIX invests in prototype modelling and laboratory testing to change industry thinking, designing and producing new products in the process.
Experience
EGIX having the satisfaction of its customers at heart, supporting you from the feasibility study to certification.
Quality Assurance
EGIX have a long list of satisfied customers such as telecom operators, equipment manufacturers and many other businesses around the world, which ensures our product and service quality.
Best Service
EGIX is dedicated to guide each product order and installation from start to finish. Our team work closely with Installers to ensure efficient client handover.
